Furiously fast and powerfully capable, the Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider on steep descents and technical climbs.
Furiously fast and powerfully capable, the Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider on steep descents and technical climbs.
Whyte Bikes

Whyte Karve RS eMountain Bike in Dark Silver

£5,650.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

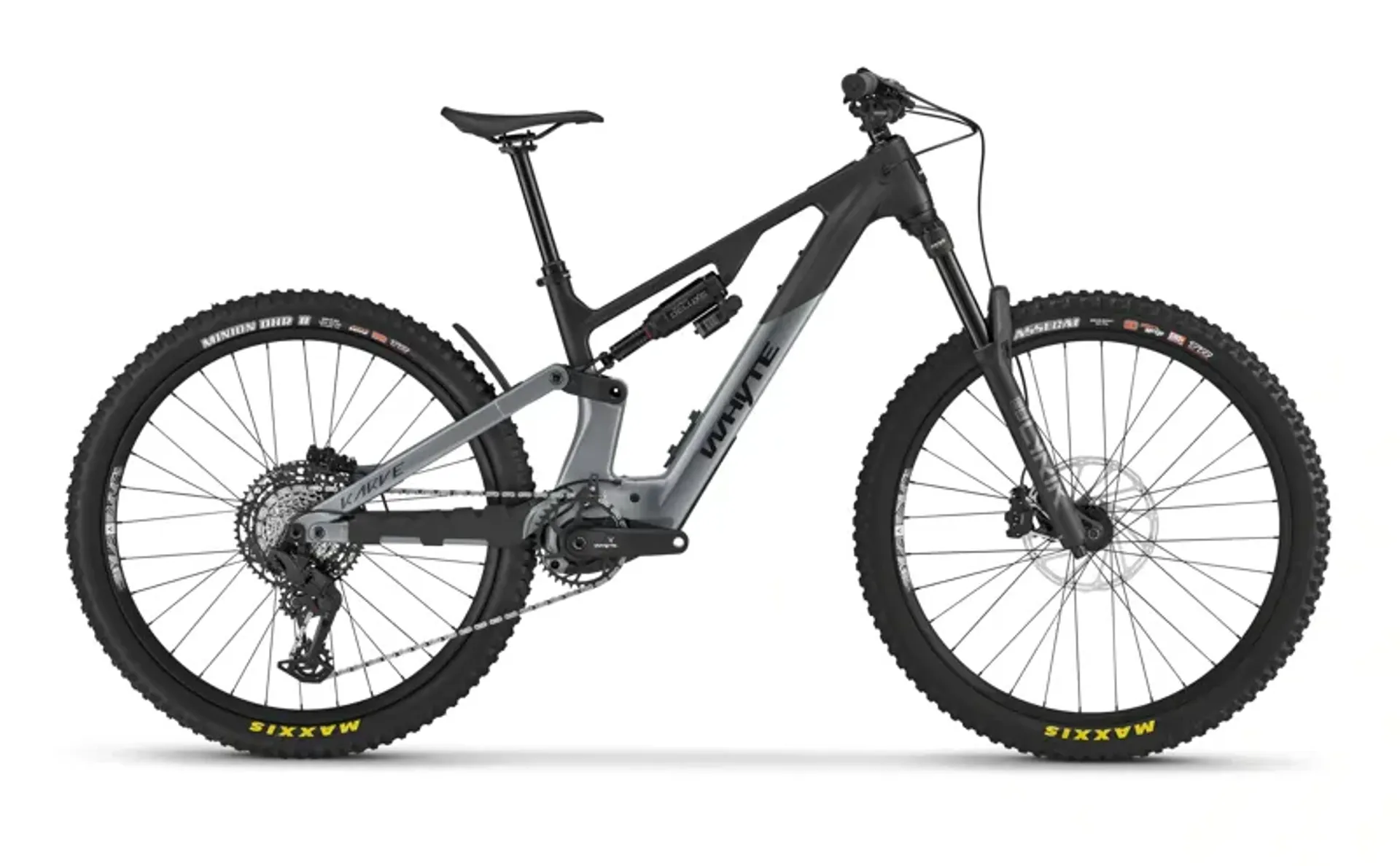

Whyte Karve RS eMountain Bike in Dark Silver

Brand:Whyte Bikes

Code:KarveRSSIL

Furiously fast and powerfully capable, the Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider.

Confident and highly capable, it is built for those who expect more control, composure and consistency from every ride. From steep descents to technical climbs and demanding back-country trails, it delivers the stability and precision to stay on line when it matters. Designed, developed and proven in the UK, the Karve RS is built to be dependable, resilient and ready to perform all year-round.

The Karve RS benefits from proportional sizing throughout the range, with specifically tuned dimensions, geometry, and front- and rear-centres designed to deliver balanced handling and uncompromised trail performance. By refining fit, weight distribution and ride dynamics for each frame size, the Karve RS stays planted, stable and predictable when trails get steep, rough and fast.

Powered by the Avinox M2S system, it combines high peak power (up to 1300W) and torque (155Nm) with smooth, responsive delivery. The internal 800Wh battery delivers the range for longer rides, while its compact, low-weight design preserves agile handling. The Shape.It Link flip-chip allows for fine-tuning to match riding style and terrain, letting you switch between high and low settings to adjust geometry, slackening the head angle by 0.6 degrees and lowering the bottom bracket by 8mm. The bike can also be converted from a full 74cm (29in) setup to MX wheels (74cm (29in) front, 70cm (27.5in) rear) by swapping the link and adding a suitable e-MTB rated 70cm (27.5in) rear wheel.

Features:

  • 160mm front and 160mm rear Quad-Link 4 suspension with custom-tuned rear shocks
  • Uni-directional carbon fibre front and alloy rear frame with geometry adjustment
  • Avinox M2S full-torque (up to 150Nm) motor with five assistance modes (auto, eco, trail, turbo, boost)
  • SRAM Eagle 90 mechanical T-Type 1x12 transmission
  • SRAM Maven Base four-piston hydraulic brakes
  • Avinox DPC100 OLED top-tube touchscreen display
  • 800Wh internal battery
  • 74cm (29in) trail-smoothing wheels
  • Charge time: 80% in approx. 4 hours 54 minutes and 100% in approx. 6 hours 11 minutes with 4A charger
Technical Information
  • Cassette
    SRAM XS 1270, T-Type, 10-52T, 12 speed
  • Frame
    Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2, 12mm x 148mm Boost dropouts
  • Chain
    SRAM Eagle 70, 12 speed
  • Fork
    RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
  • Crankset
    Whyte 155mm ISIS crank arms, SRAM direct mount 36T chainring, T-Type
  • Rear shock
    RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm
  • Headset
    FSA custom headset, ZS56 upper / lower cups for 1 1/18in upper and 1.5in lower with sealed bearings
  • Seatpost
    TranzX +RAD adjustable dropper post, 34.9mm, size specific drop (S: 150mm, M: 170mm, L-XL: 200mm)
  • Rear hub
    Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub
  • Front hub
    Alloy, double sealed cartridge bearings, 15mm x 110mm thru axle, 32 hole
  • Spokes
    14g stainless black, brass nipples
  • Rims
    Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29in
  • Tyres
    Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
  • Brakes
    SRAM Maven Base hydraulic disc, four piston, sintered metal pads, 220mm front/200mm rear Centreline rotors
  • Shift levers
    SRAM Eagle 70, 12 speed
  • Rear mech
    SRAM Eagle 90 T-Type mechanical, 12 speed
  • Pedals
    Fibre reinforced composite platform
  • Drive unit
    Avinox M2S, 150Nm torque, 1300W peak power, 250W nominal power, five power modes
  • Battery
    Avinox 800Wh fixed
  • Display
    Avinox DPC100 OLED
  • Charger
    4A (230V)
  • Charge time
    80% in 4hr 54mins, 100% in 6hrs 11mins
  • Suspension travel
    160mm front, 160mm rear
  • Reach
    444mm (S), 469mm (M), 494mm (L), 519mm (XL)
  • Stack
    615.2mm (S), 626mm (M), 636.7mm (L), 651.1mm (XL)
  • Head angle
    64 / 63.4 degrees
  • Seat angle
    80.1/79.5 (S), 79.6/79.0 (M), 79.0/78.4 (L), 78.4/77.8 (XL) degrees
  • BB height
    350.8mm
  • Wheelbase
    1220.2mm (S), 1250.5mm (M), 1290.8mm (L), 1333mm (XL)
  • Rear centre
    445mm (S/M), 455mm (L), 465mm (XL)
  • Standover height
    795mm
  • Seat tube length
    395mm (S), 420mm (M), 445mm (L), 470mm (XL)
  • Head tube length
    97mm (S), 109mm (M), 121mm (L), 137mm (XL)
  • Max seatpost insertion
    260mm (S), 285mm (M), 310mm (L), 335mm (XL)
